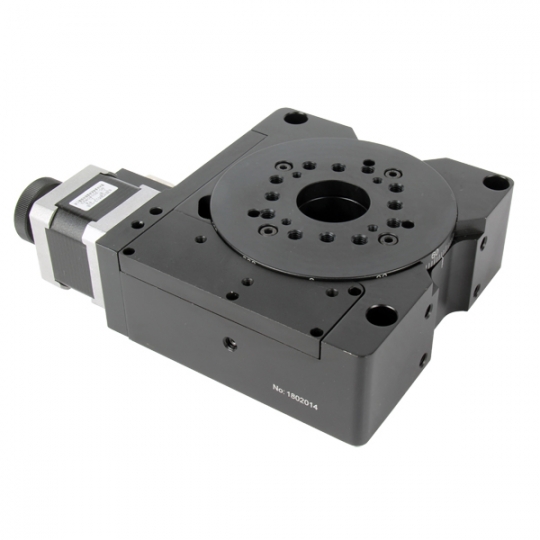

Closed-Loop Motorized Rotary Stage

Model: MOR-100-30-A-G
Ask a Question
Shipping Weight: 2.5kg

Unit Price: $4,880.00

4880 reward points
-+ Units



Qty Discounts Off Price
1-2
$4,880.00
3-4
$4,782.40
5-9
$4,684.80
10-19
$4,636.00
20+
$4,587.20

Product Description
Reviews
Payment & Delivery


Features:

  • Ultra-high precision encoder for closed-loop precise rotation

  • Better performance for vertical use or upside-down use

  • Clearance elimination design for long life

  • Precision ground and hardened worm gear with self-compensating preload

  • Proprietary ball bearings provide smooth motion with low wobble

  • Laser-engraved scale ring for easy reading and positioning

  • NEMA 17 stepper motor drive and DB9 interface

  • Hand wheel for manual drive




Description:



This closed-loop rotary stage includes an encoder for superior position feedback for rotational accuracy. This product provides microradian precision and continuous 360° rotation.



Our motorized rotation stages use the ground worm gear structure, and the shaft system is precisely made of bearing steel. The motorized rotary stages feature high precision and big load capacity. Specially, the clearance elimination structure is designed for long-time working.



This motorized rotation stage has a central aperture and zero position. The aperture diameter is 30mm. A hall effect sensor (as the zero position) is built in the rotation stage, so the rotation stage can't move in a negative direction to pass over the zero position.



It can connected with our motion controller via the DB9 interface and is controlled by our computer software via the Ethernet interface on the controller.


Specifications:



Model

MOR-100-30-A-G

Platform Diameter

100mm

Angular Range

360°

Transmission Ratio

180:1

Open-Loop Resolution (1/8 Step)

0.00125°

Closed-Loop Resolution

3"

Repeatability

0.004°

Accuracy

15"

Wobble

40μ

Eccentricity

40μ

Backlash

10μ

Motor Type

NEMA17 Stepper Motor (1.8°)

Maximum Static Torque

0.4Nm

Rated Current

1.7A

Maximum Speed (1/2 Step)

25°/sec

Aperture Diameter

ø30+0.025mm

Zero Position

Built-in (Hall Effect Sensor)

Center Load Capacity

50kg

Weight

2kg

Compatible Motion Controller

MOC-03-1-220   / MOC-03-1-110




Drawing:



Motorized Rotary Stage


Motion Controller:



03 series closed-loop motion controller can be used to control motorized stages with grating rulers/encoders. We have 220V and 110V power supply options for each motion controller. Please click following links to get more information.



  MOC-03 Series  Closed-Loop Motion Controller (for NEMA17/NEMA23 Stepper Motor, 220V)



  MOC-03 Series Closed-Loop Motion Controller (for NEMA17/NEMA23 Stepper Motor, 110V)




Pin Layout:



  Pin Layout of Motorized Rotation Stage with Hall-Effect Sensor (PDF)



Datasheet of Stepper Motor:



  DataSheet of NEMA17-1.8 Stepper Motor.pdf (PDF)




Datasheet for Hall Effect Sensor:



  Datasheet for Hall Effect Sensor (PDF)




Auto CAD (.PDF) and SolidWorks Model(.STEP):



  MOR-100-30-A-G(.pdf)



  MOR-100-30-A-G(.zip)
