XY Stage With Integrated Motor

Model: MOXY-02-30-30-E
Ask a Question
Shipping Weight: 2.6kg

Unit Price: $2,724.00

Choose Model:



2724 reward points
-+ Units



Qty Discounts Off Price
1-2
$2,724.00
3-4
$2,669.52
5-9
$2,615.04
10-19
$2,587.80
20+
$2,560.56
* Discounts may vary based on options above

Product Description
Reviews
Payment & Delivery
CE Certificate



Features:

  • Integrated stepper motor combining motor, driver, and encoder.

  • Controlled by computer software directly.

  • Providing high-resolution step operation.

  • Encoder with stall detection and stall prevention functions.

  • High precise ground lead screw, high solution.

  • Crossed roller guide, high accuracy, and good linearity.

  • Zero position switch and limit switch.

  • Assembled by two motorized linear stages MOX-02-30-E, MOX-02-50-E or MOX-02-100-E


Description:


This series of XY stages use the integrated stepper motor which has combined motor, driver, and encoder. These XY stages can be controlled by the computer software directly instead of a stand-alone controller. The highest microstep resolution can be set to 51200 steps/rev. The encoder has stall detection and stall prevention functions. It can prevent the motor stalling and provide position maintenance when the motor is stopped.



Along with the XY stage, we provide a power supply box which has included the power supply inside, all the necessary cables, interface ports and the RS485 to USB convertor. The power supply box needs to be bought separately. The XY stage can be easily controlled by our software or by the serial port commands. By using the serial port commands, users can easily make own program via LabView or Matlab.


Please inquire us the lead time before you place the order online.



Specifications:


Model

MOXY-02-30-30-E

MOXY-02-50-50-E

MOXY-02-100-100-E

Travel Range

30mm x 30mm

50mm x 50mm

100mm x 100mm

Screw Pitch

1mm

Microstep Resolution

200 to 51200 steps/rev (Default 20000 steps/rev)

Resolution

5μ to 0.01953μ (Default 0.05μ)

Maximum Speed

10mm/sec

Repeatability

<5μ

Backlash

<20μ

Motor Type

NEMA17 Integrated Stepper Motor (1.8°)

Maximum Static Torque

0.48Nm

Rated Current

1.8A

Center Load Capacity

8.7kg

8.5kg

7.9kg

Weight

2.6kg

3kg

4.2kg

Power Supply Box

PSB-01-2-220/PSB-01-2-110




Drawing:

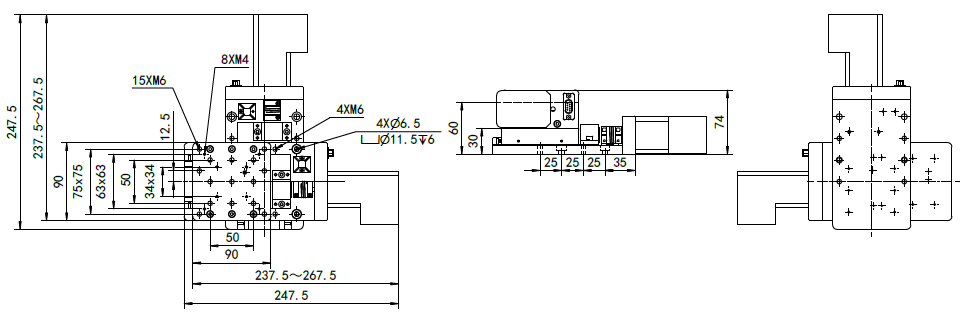

MOXY-02-30-30-E
Motorized XY Linear Stage



MOXY-02-50-50-E


Motorized XY Linear Stage



MOXY-02-100-100-E


Motorized XY Linear Stage






Pin Layout:



  Wiring Diagram of Motorized Linear Stage with Integrated Motor (PDF)




Auto CAD (.PDF) and SolidWorks Model(.STEP):



  MOXY-02-30-30-E(.pdf)



  MOXY-02-50-50-E(.pdf)



  MOXY-02-100-100-E(.pdf)



  MOXY-02-30-30-E(.zip)



  MOXY-02-50-50-E(.zip)



  MOXY-02-100-100-E(.zip)
