Features:
Czerny-Turner optical design for high resolution & maximum throughput while minimizing stray light & aberrations
Triple ruled gratings used for high efficiency ultraviolet to visible wavelength scanning
Single or dual output port version with CCD detector
Micrometer adjustable slits
Utility software and an ActiveX Control file included
Control with USB and RS-232
Nitrogen connector is available for UV and NIR testing
Entrance is compatible with our light sources and fiber interface
Exit is compatible with our single-point detector and other accessories
The precision worm & gear structure guarantee the high accuracy and repeatability
Optics chamber and mechanical drive chamber are separated to reduce stray light and pollution to optical components
Description:

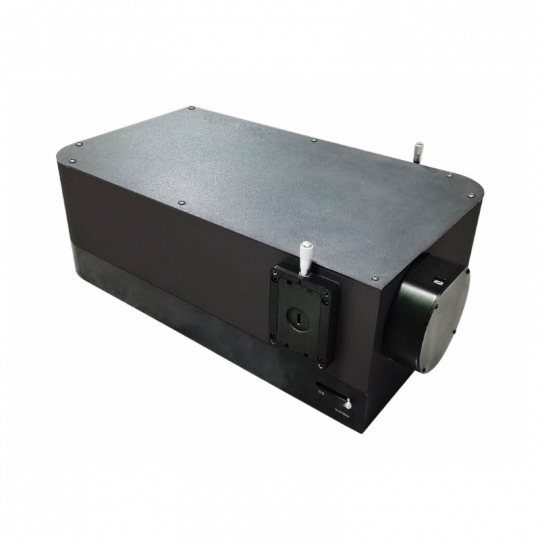

This series of Spectrometer is a high performance, economical and user-friendly spectrometer – an ideal instrument for research and OEM applications.
This series of Spectrometer uses an asymmetrical in-plane Czerny-Turner optical configuration. The optical configuration is designed to ensure high resolution and maximum throughput. These F/4.8 Spectrometers are optimized to provide excellent stray light rejection while minimizing aberrations. Its wavelength drive is designed to increase speed as much as possible without sacrificing accuracy or precision.
Utility software is included to control both the spectrometer and filter wheel. An ActiveX Control file and an easy-to-understand command set are provided for those wanting to create their own programs by LabView or other programing languages.
Specifications:
|
Model |
7ISW3051 |
7ISW3052 |
7ISW3053 |
|
Focal Length |
300mm |
||
|
F/# |
F/4.8 |
||
|
Stray Light |
5x10-4 |
||
|
Minimum Step |
0.0023nm |
||
|
Number of Gratings Supported |
3 |
||
|
Grating Name |
Grating S55x55x6 |
||
|
Grating Size |
55mmx55mm |
||
|
Standard Grating |
OG1200-300(1200g/mm, λp=300nm) |
||
|
Wavelength Selection Method |
Motorized |
||
|
Output Ports |
1 |
2 |
2 |
|
Output Ports Selection Method |
N/A |
Manual |
Motorized |
|
Position of CCD Detector |
Axial Exit |
||
|
Slits |
Micrometer Slit |
||
|
Slits Height |
14mm |
||
|
Slits Width |
10µm-3mm |
||
|
Communication Interfaces |
RS232 and USB |
||
|
Size |
390mmx278mmx204mm |
||
|
Weight |
16kg |
||
Specifications of Optional Gratings:
|
Grating Model |
Linear Dispersion (nm/mm) |
Accuracy (nm) |
Repeatability (nm) |
Resolution (nm) |
Theoretical Spectral Range (nm) |
Mechanical Spectral Range (nm) |
|
OG2400-250 |
1.3 |
0.1 |
0.05 |
0.05 |
185-500 |
0-550 |
|
OG1800-250 |
1.7 |
0.15 |
0.08 |
0.04 |
185-500 |
0-730 |
|
OG1800-500 |
330-730 |
|||||
|
OG1200-250 |
2.7 |
0.2 |
0.1 |
0.1 |
185-500 |
0-1100 |
|
OG1200-300 |
200-600 |
|||||
|
OG1200-500 |
330-1000 |
|||||
|
OG600-500 |
5.4 |
0.4 |
0.2 |
0.2 |
330-1000 |
0-2200 |
|
OG600-750 |
500-1500 |
|||||
|
OG600-1000 |
660-2000 |
|||||
|
OG600-1250 |
830-2200 |
|||||
|
OG300-500 |
10.8 |
0.8 |
0.4 |
0.4 |
330-1000 |
0-4400 |
|
OG300-1250 |
830-2500 |
|||||
|
OG300-1800 |
1200-3600 |
|||||
|
OG300-3000 |
2000-4400 |
|||||
|
OG150-4000 |
21.6 |
1.6 |
0.8 |
0.8 |
2600-8000 |
0-8800 |
|
OG66-DB |
48.6 |
3.7 |
1.8 |
1.8 |
2500-25000 |
0-20000 |
|
OG50-12000 |
65 |
5 |
2.5 |
2.5 |
8000-24000 |
0-26400 |
If you want to choose other gratings, please confirm the price before ordering.
Optical Design:
7ISW3051:
7ISW3052, 7ISW3053:
SolidWorks Model(.STEP):
User Manual:
7ISW305 Series Spectrometers User Manual (.pdf)
Software and Controls:
RS232-USB Converter Driver (.zip)
Serial Port Commands:
ActiveX Control and LabVIEW Example for x86:
DLL and Examples for x64 & x86:
