Features:
Wedge-shaped block transmission mode
High precision crossed roller guides
Fine positioning via micrometer head with high resolution
5 mm height adjustment
Thumb screw lock on the stage
Black anodized aluminum construction
Description:

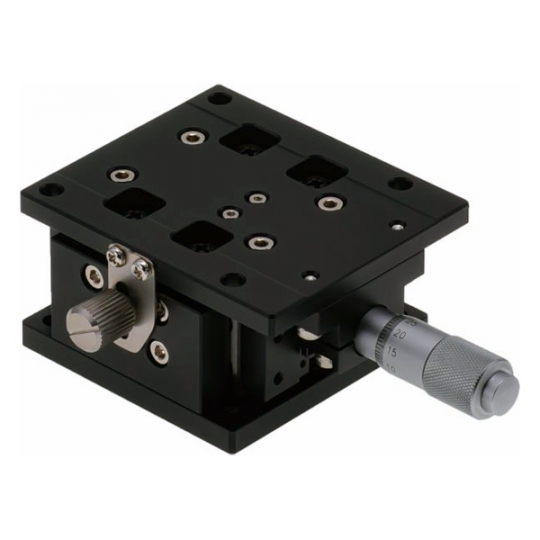

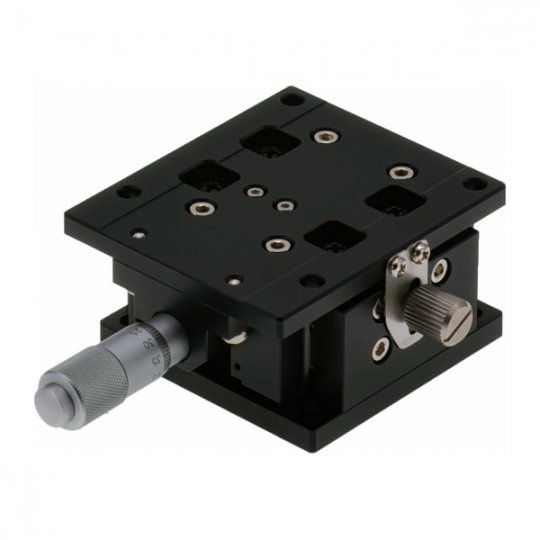

The MAZ-60H-5R-W2 stage uses two pairs of high-precision crossed roller guides to ensure high accuracy and smooth motion. This vertical translation stage is shipped complete with a fine adjustment micrometer drive. The micrometer head offers 5 mm of fine positional adjustment with a 5 µm graduated scale.
This Z-axis stage uses a wedge-shaped block transmission mode, and the transmission rate is 1:2. The main material of the vertical translation stage is aluminum alloy, so the weight of the vertical stage is very light, and the stage can be easily built into other equipment.
The mounting hole pattern is compatible with other 60 mm-sized components. The stage can be easily stacked to xz, xyz, and xyzθ configurations with our x stages, xy stages, or rotation stages.
Specifications:
|
Model |
MAZ-60H-5R-W2 |
|
Axes of Travel |
Z |
|
Platform Size |
60x60mm |
|
Travel |
5mm |
|
Drive |
Micrometer Head |
|
Thumb Screw Position |
Left Side |
|
Guide Type |
Crossed Roller Guide |
|
Transmission Rate |
1:2 |
|
Readable Resolution |
0.005mm |
|
Parallelism |
0.05mm |
|
Material |
Aluminum Alloy |
|
Load Capacity |
58.8N(6kgf) |
|
Weight |
0.4kg |
Drawing:
SolidWorks Model(.STEP):
